CIK-FIA 6/CH/17

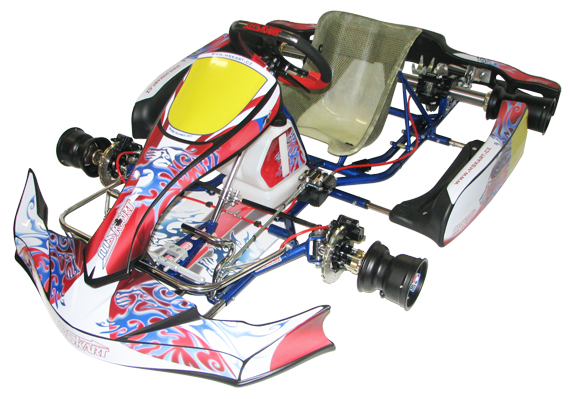

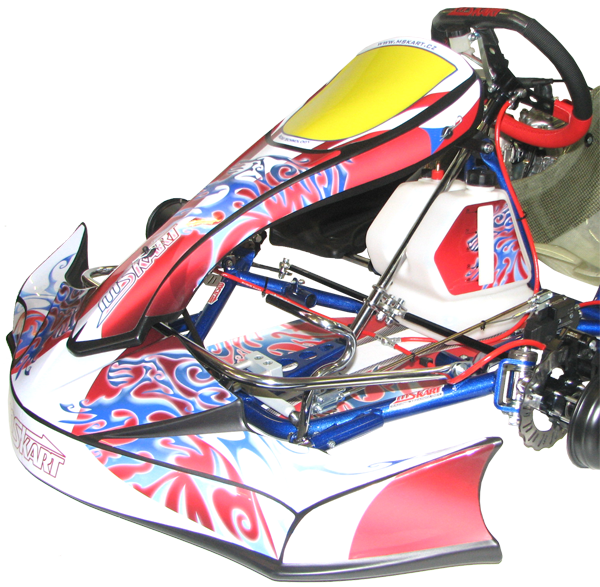

The MS KART Blue Falcon chassis has international homologation CIK/FIA valid for all cathegories until 2017. The homologation number is 6/CH/17.

The Blue Falcon model of MS KART chassis is available in following configurations:

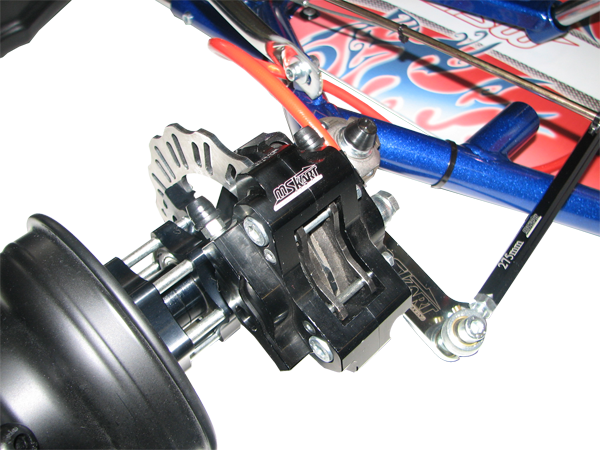

• Blue Falcon / KZ with front brakes (ref. 001C)

• Blue Falcon / KF without front brakes (ref. 002D)

• Blue Falcon / KF with front brakes operated by hand (ref. 003A)

• Blue Falcon / KZ – 4T with front brakes, made for left hand drive (ref. 001Ca)

• Blue Falcon / KF – 4T without front brakes, made forleft hand drive (ref. 002Da)

• Blue Falcon / DD2 (ref. 001Cb)

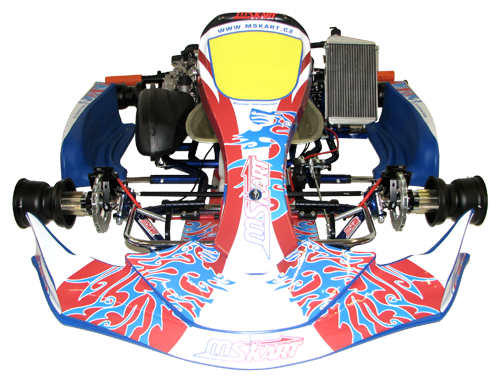

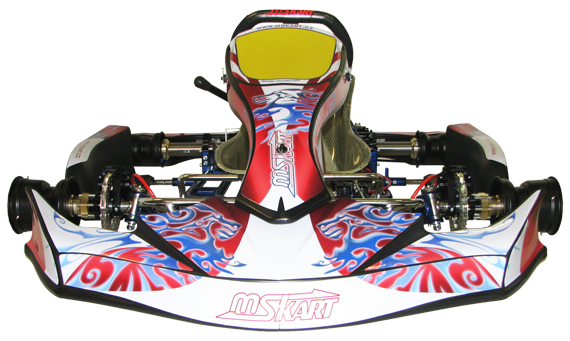

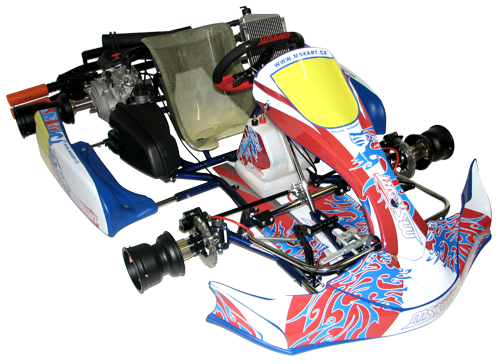

We supply the MS KART Blue Falcon chassis also as complete karts with following engines:

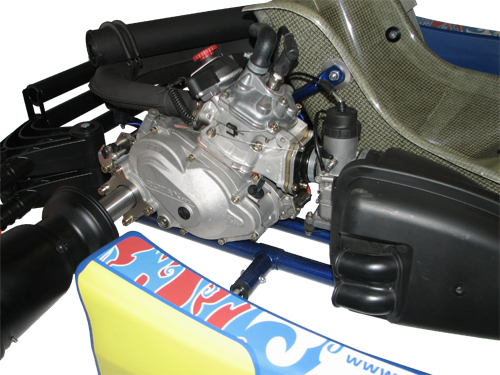

• Kart MS KART Blue Falcon / KZ with TM KZ10 engine (ref. 030D)

• Kart MS KART Blue Falcon / KZ with VM 125 M02/B engine (ref. 030Da)

  Kart MS KART Blue Falcon / KZ with Rotax MAX DD2 engine (ref. 030Db)

• Kart MS KART Blue Falcon / KF2 with Rotax MAX engine (ref. 030Dc)

• Kart MS KART Blue Falcon / KF with Rotax MAX engine (ref. 030Dd)

• Kart MS KART Blue Falcon / KF with Rotax Junior MAX engine (ref. 030De)

• Kart MS KART Blue Falcon / KF - 4T with HONDA GX390 engine (ref. 030Df)

Chassis technical data:

Frame         Cr-Mo4 Ø 30 mm

Wheel base 1050 mm

Rear axle     Ø 50 mm

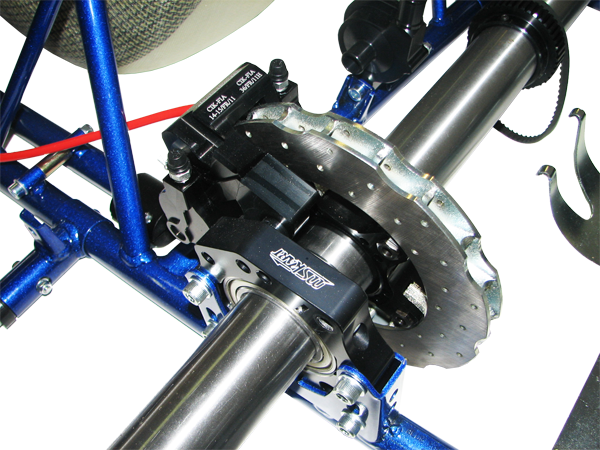

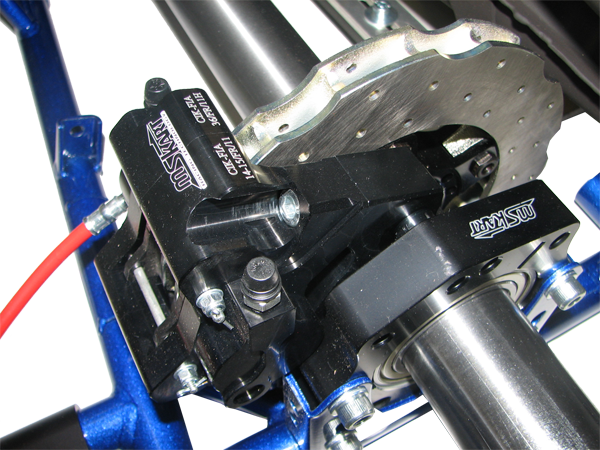

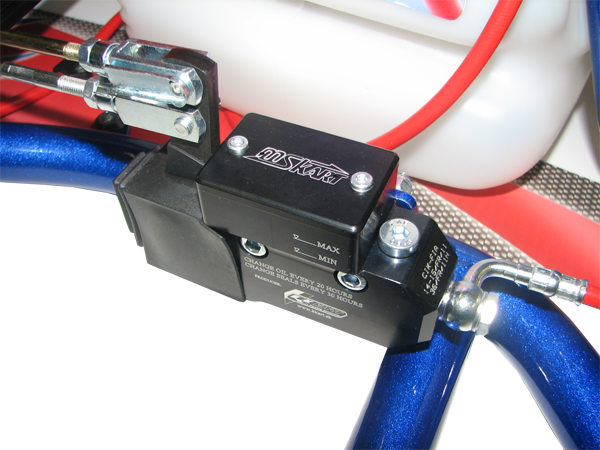

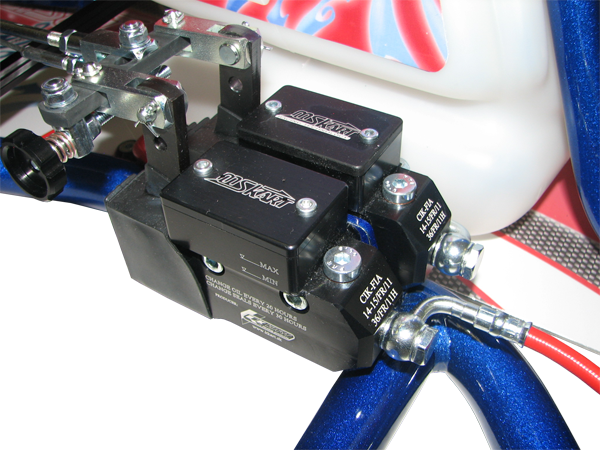

- hydraulic selfadjusting K KART brakes (with automatic adjustment of clearance between brake pads and brake disc), homologated by CIK-FIA

- K KART self ventilated brake discs

- brake pads available in 3 different hardness (hard S214, medium S222 and soft S273)

- rear axle available in 3 different hardness (soft MS38, medium MS53 and hard MS67)

- manual brake distribution

- adjustable front and rear chassis height

- aluminium Douglas Wheel rims

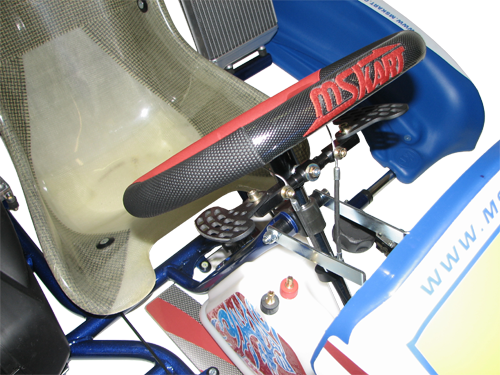

- leather steering wheel MS KART made by KG

- laminate seat

- steel rear bumper

- side torsion bar

- aluminium floor tray including decall

Special accessories:

- adjustable chassis stiffness – front and rear torsion bar

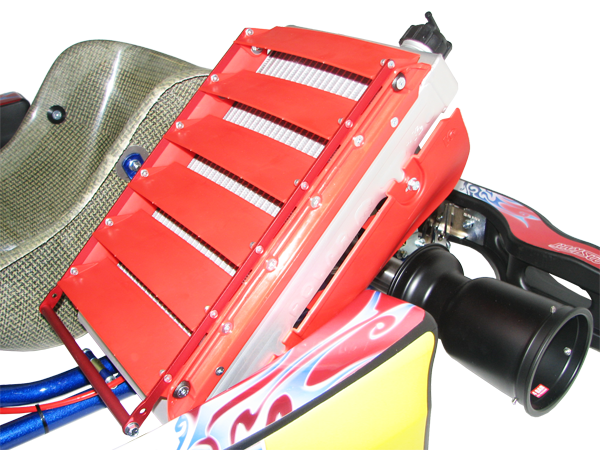

- KTM, POLAR 02 or BAR radiator (on order only, available in two sizes)

- water pump with toothed drive

- magnesium Douglas Wheel rims

- SNIPER king pin eccentrics

- carbon-kevlar floor tray

- carbon-kevlar or combinated laminate/carbon-kevlar seat

- partly or totally covered seat (full cover on order only)

- CKR steering wheel fit AIM or ALFANO data recording

- plastic rear spoiler made by KG

- adjustable aluminium foot stop

- MS KART decall kit

- aluminium pedals

Click here to download the homologation forms >>

Click here to download the information on chassis set up >>

 Details:

Blue Falcon / DD2
