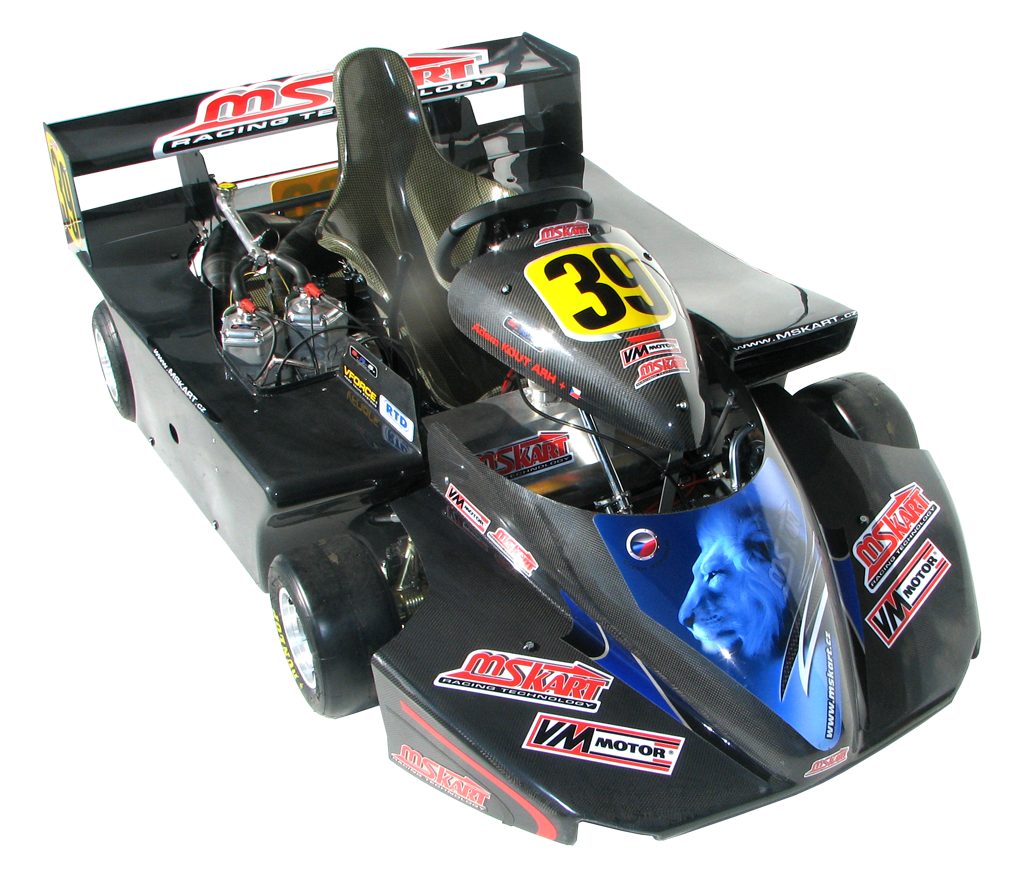

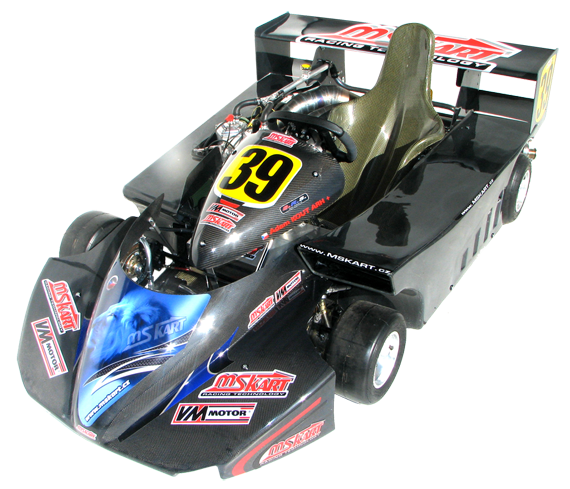

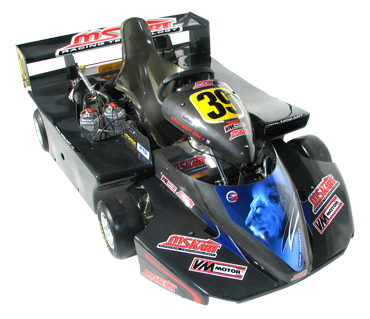

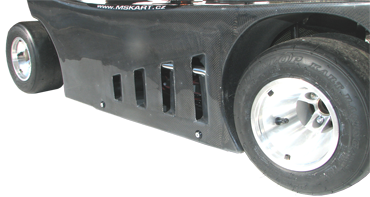

Kart made for Superkart cathegory.
The kart is complete with all the accessories, without tyres.

Catalogue for download

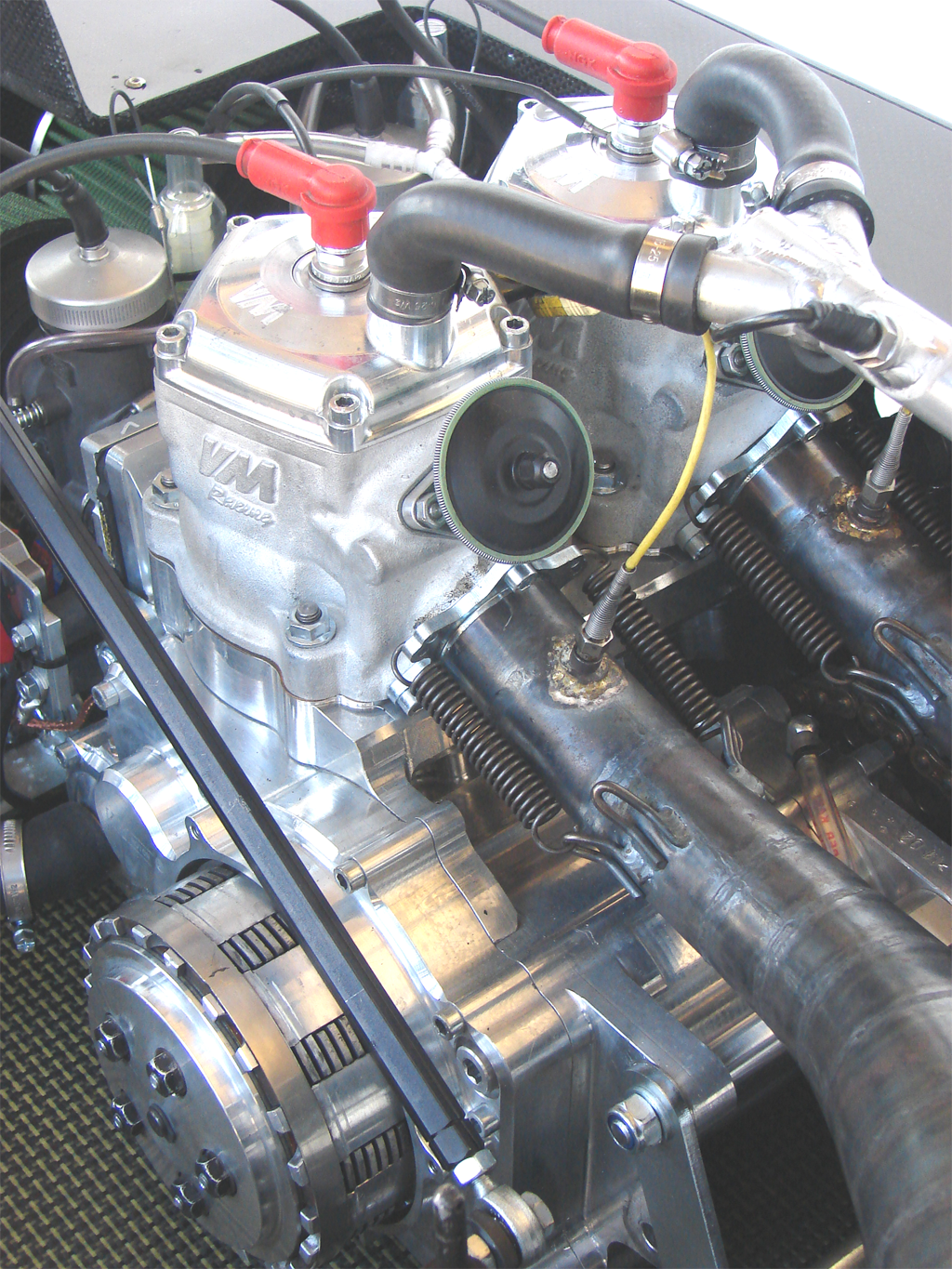

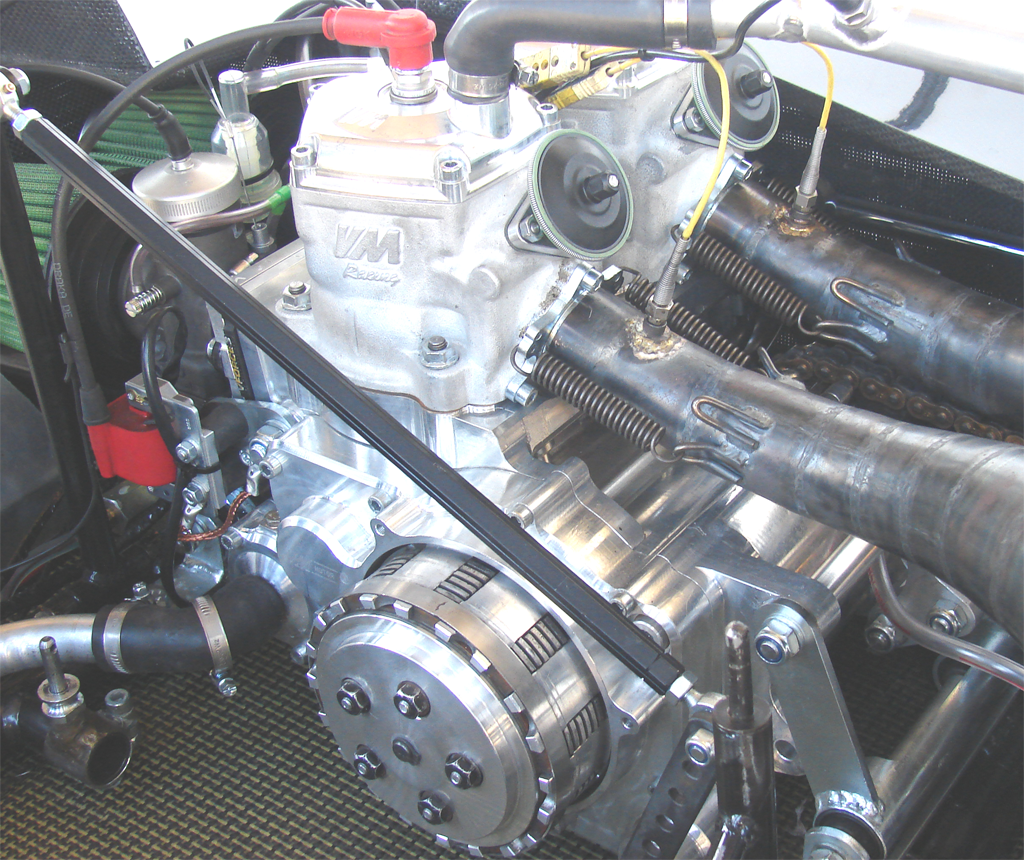

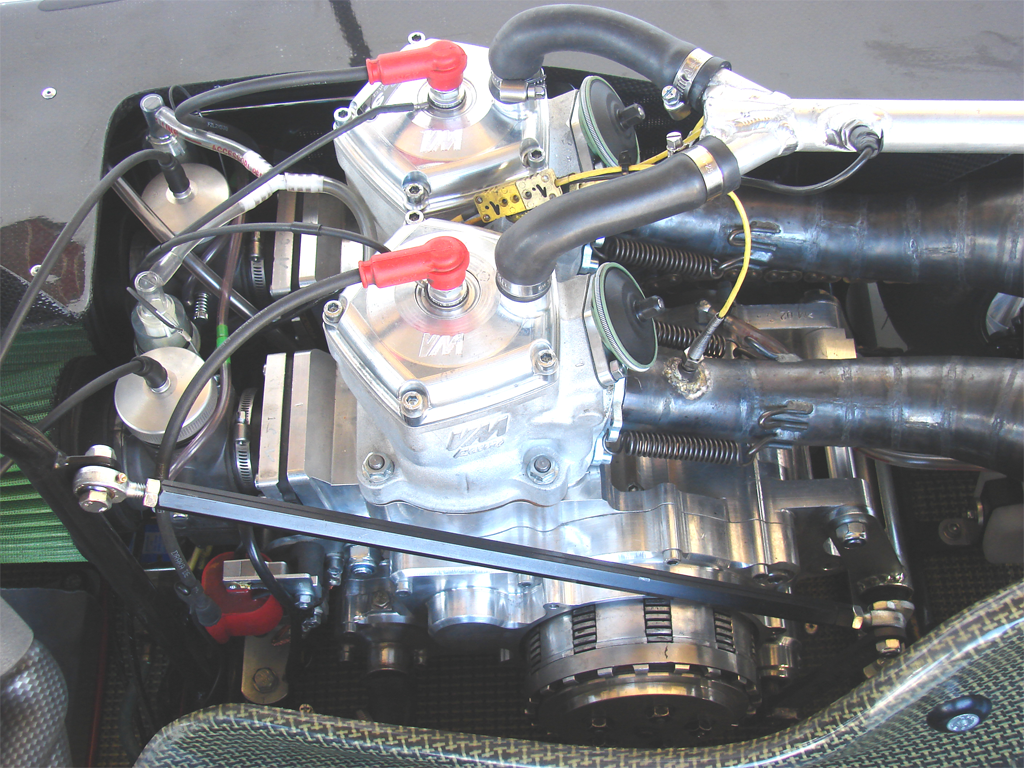

Engine:

Model         VM 250 M/01
Volume       250 ccm
Bore           54 mm
Stroke        54,5 mm
No. of cylinders 2
Cooling       water
Intake         membrane
Maximum revs 14.000 rpm

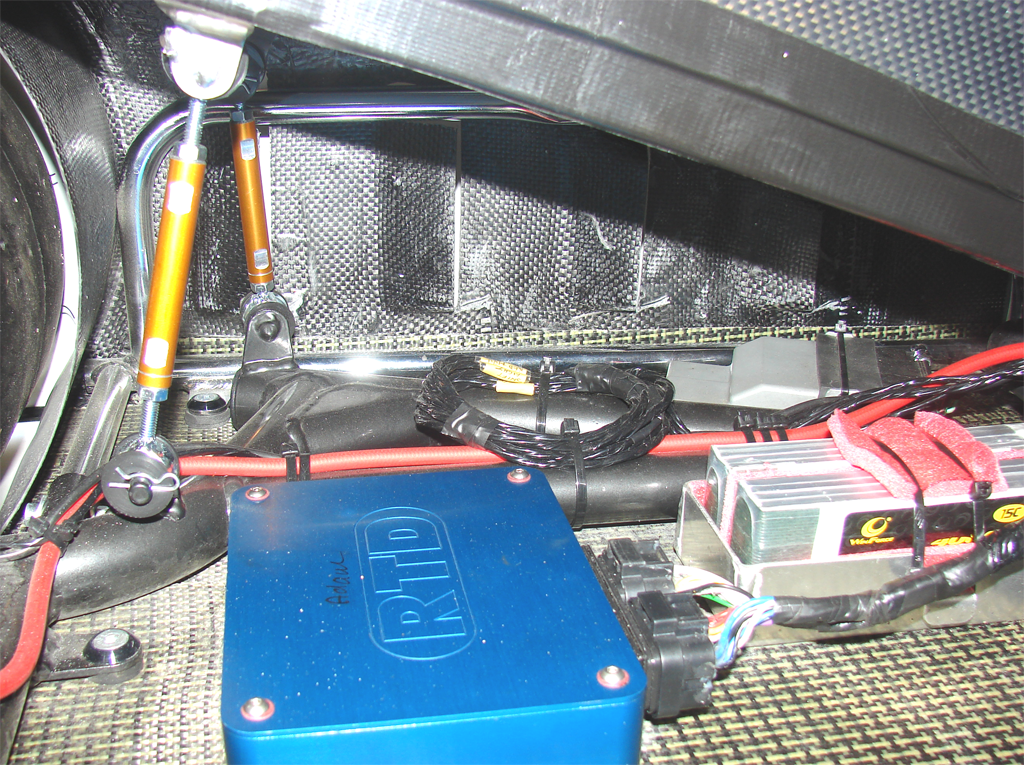

Ignition      RTD

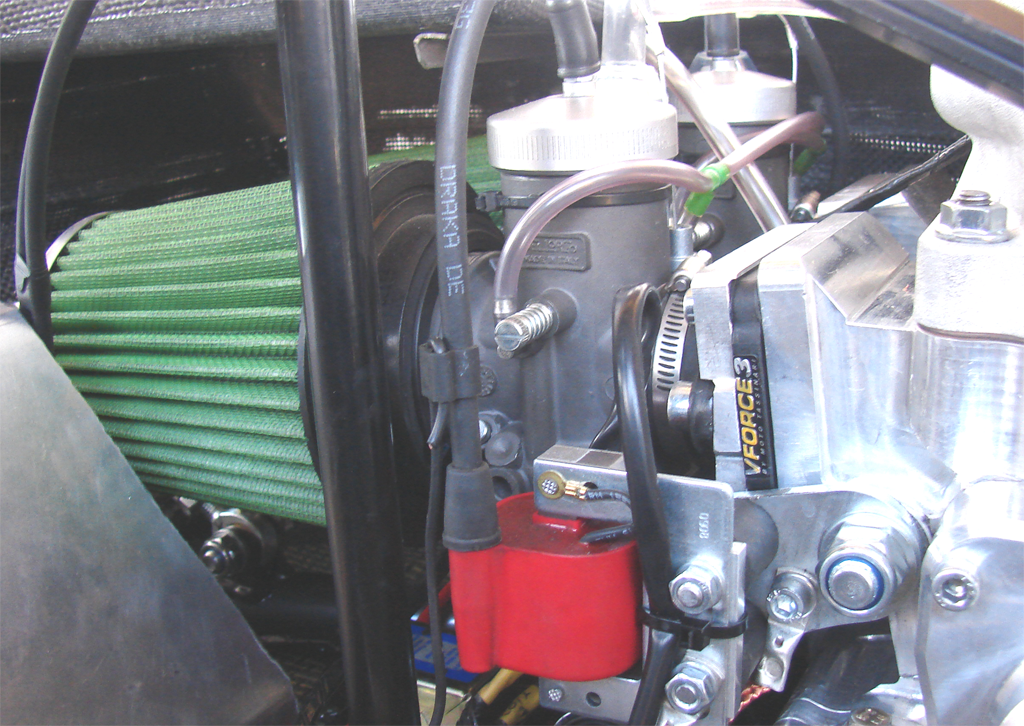

Carbureter  Dell´Orto
CIK-FIA      Registration No. 32/SKM/13

Chassis:

Model        MS SUPERKART
Frame        Cr-Mo4 Ø 30 mm
Wheel base 1120 mm
Rear axle    Ø 40 mm
Front wheel track  1050 mm
Rear wheel track   1050 mm

Weight of the complete chassis without tyres: 84 kg
Weight of the complete kart with tyres: 136 kg

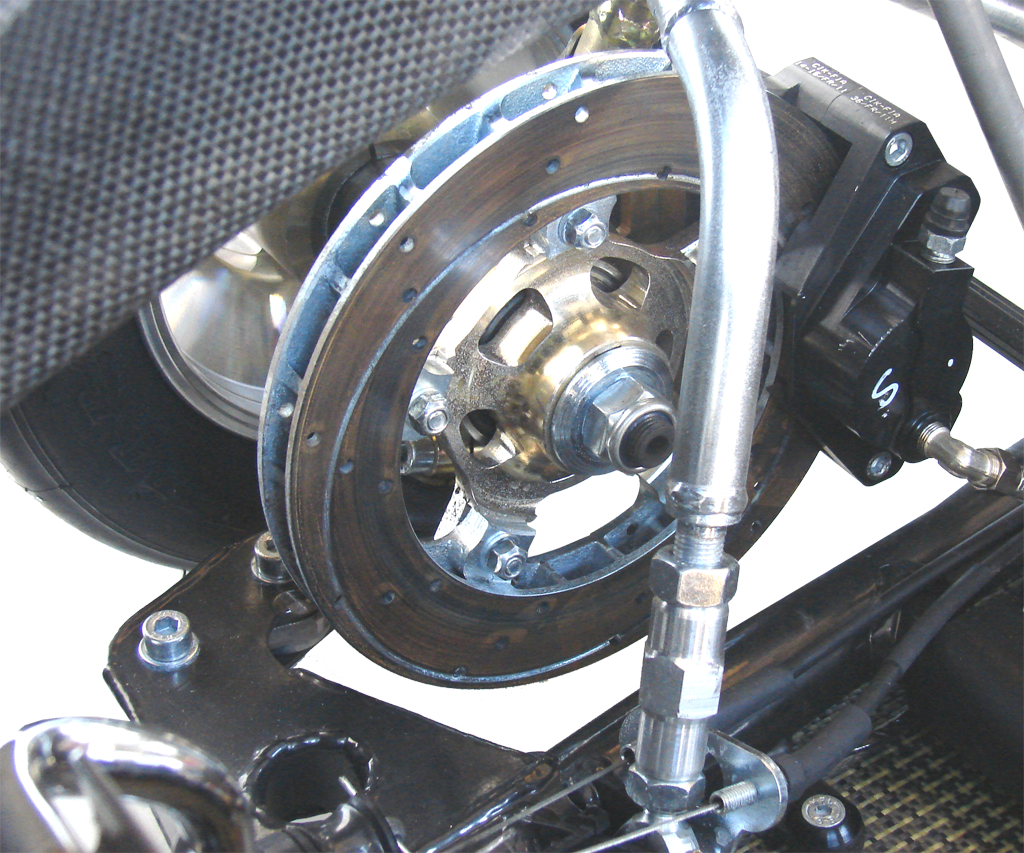

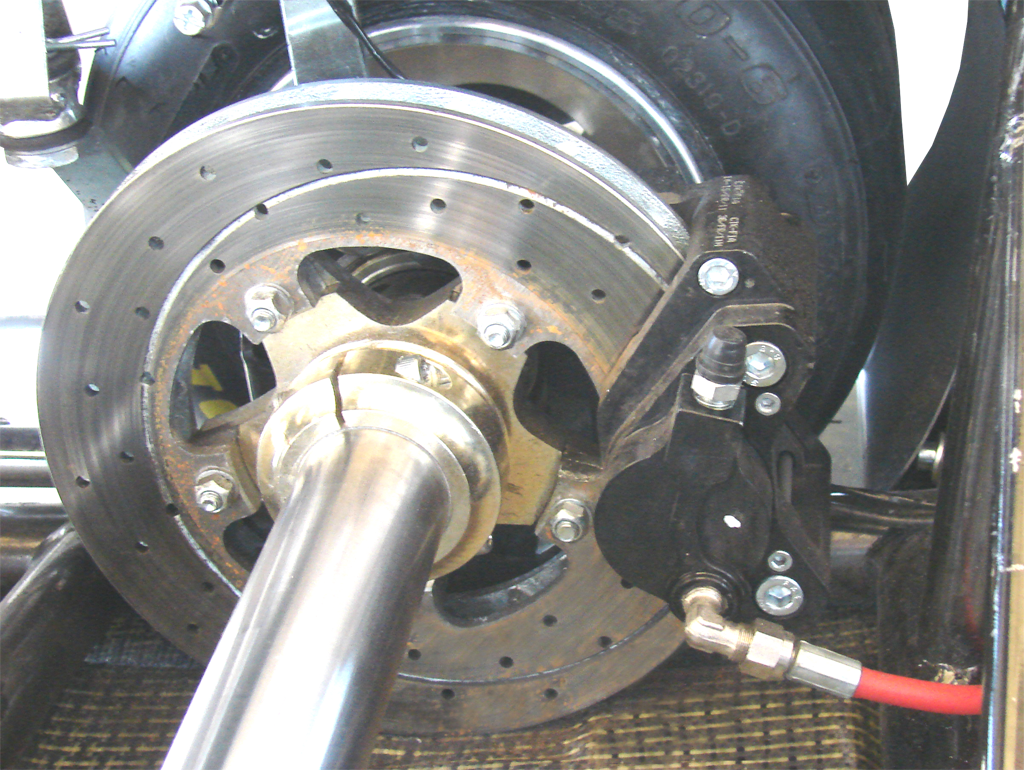

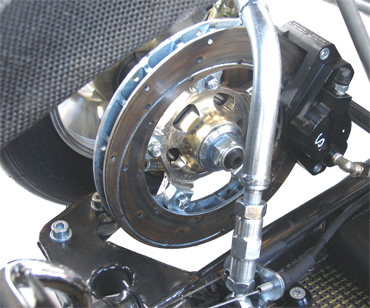

- hydraulic selfadjusting K KART brakes (with automatic adjustment of clearance between brake pads and brake disc)
- K KART selfventilated cast-iron brake discs

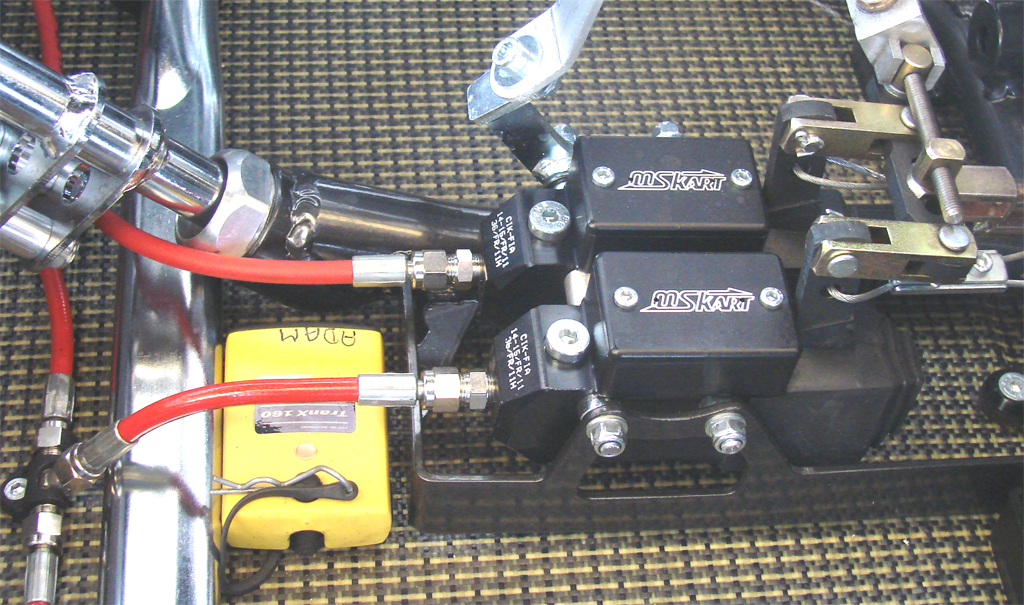

- manual brake distribution
- adjustable front axle geometry
- adjustable chassis stiffness by stabiliser
- adjustable front and rear chassis height
- adjustable front spoiler lift force
- adjustable rear wing lift force
- aluminium radiator inside the left side panel
- aluminium fuel tank 17 l
- brake pads available in 3 different hardness (hard S214, medium S222 and soft S273)
- aluminium 6“ wheel rims

- leather steering wheel
- laminate seat

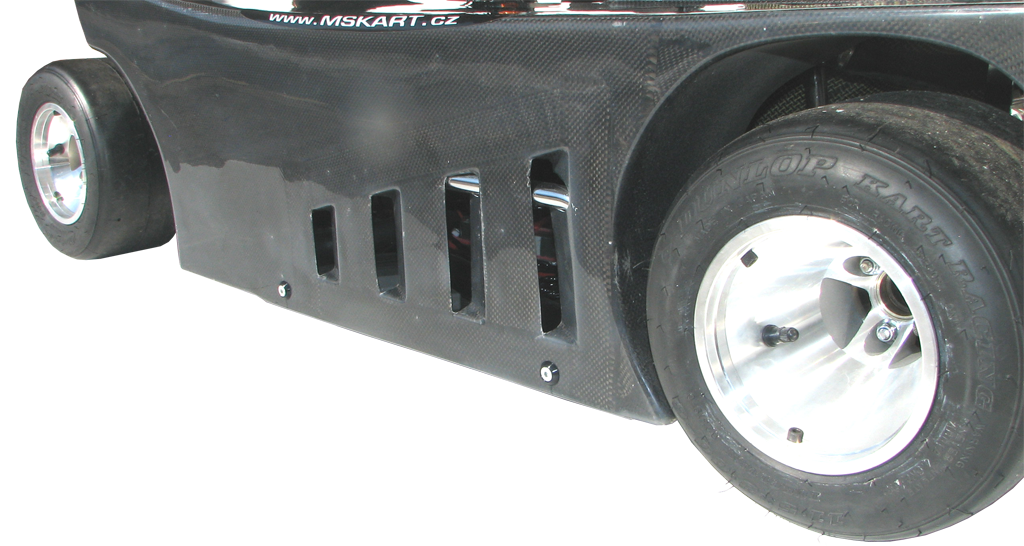

- carbon-kevlar floor tray

Special accessories:

- carbon-kevlar seat

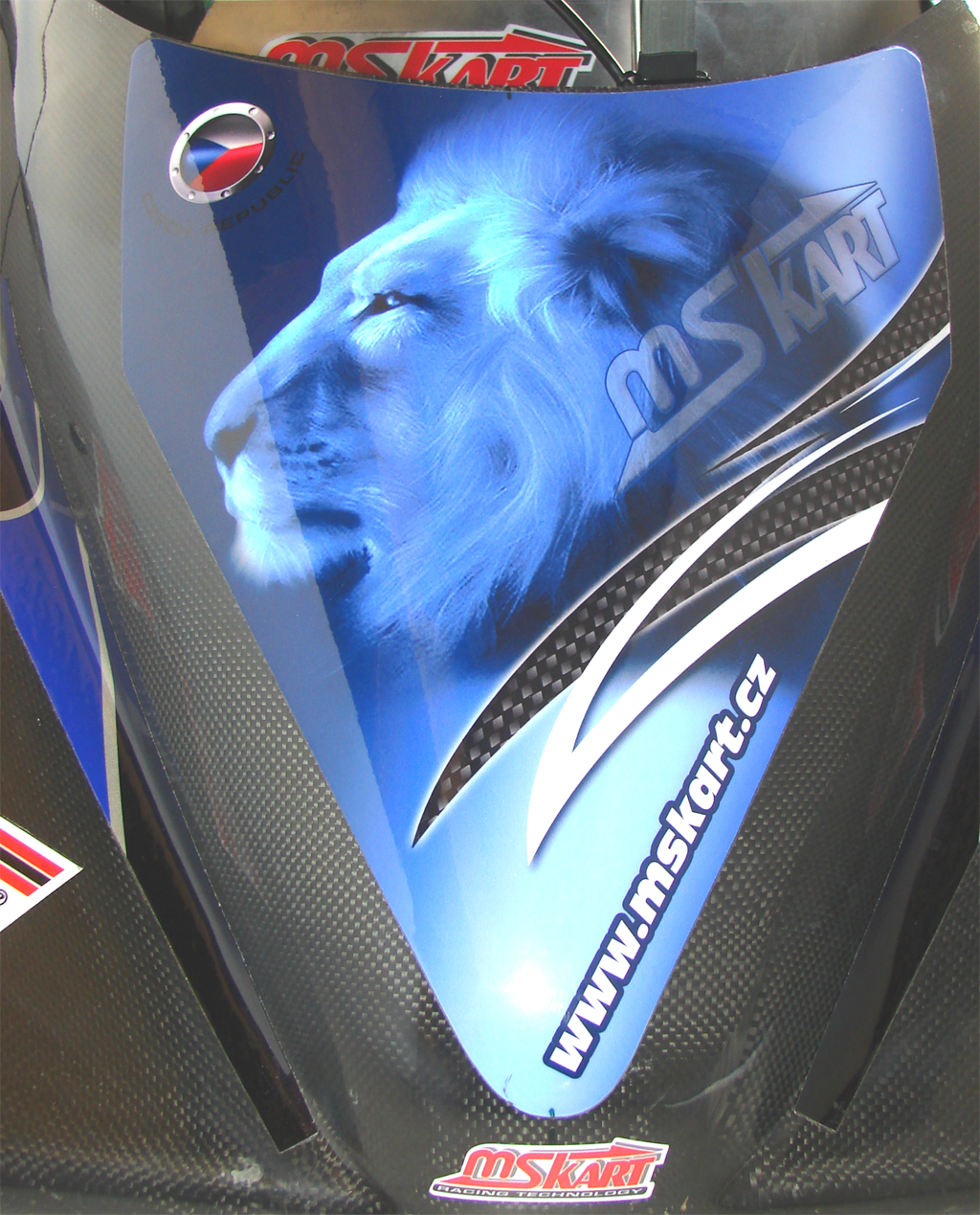

- carbon bodywork

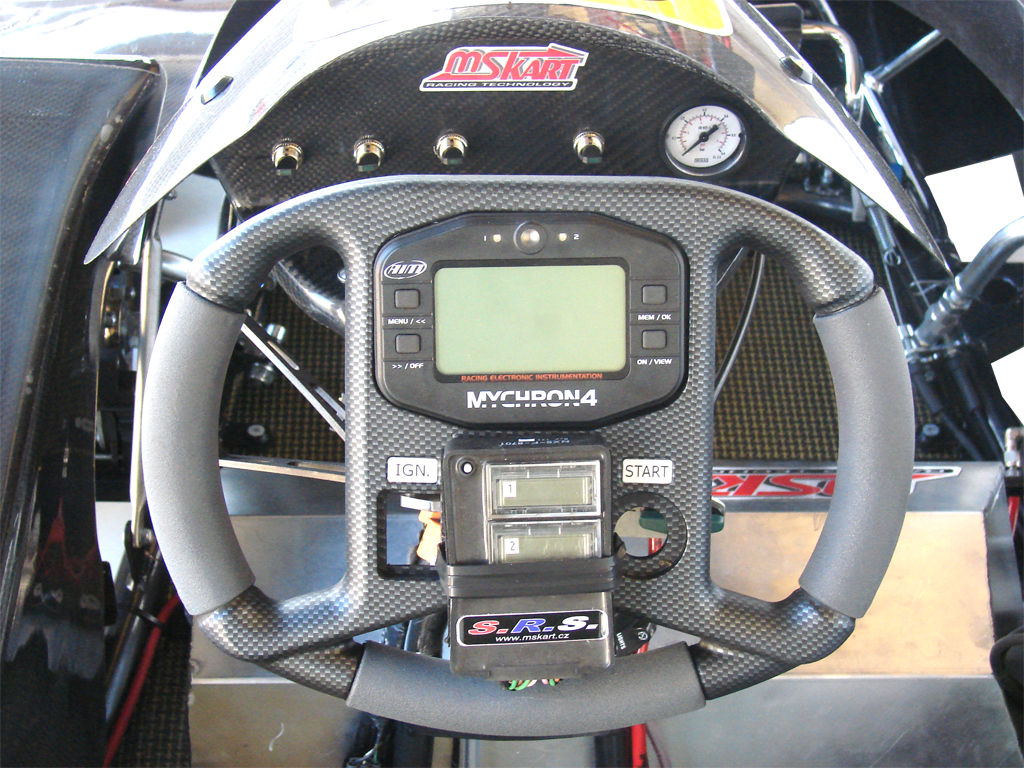

- CKR steering wheel for datarecording AIM or ALFANO
- brake regulation remote control (operated from the drivers´position)
- electric fuel pump + fuel pressure regulator
- data recording AIM
- AIM exhausts temperature sensors
- Honda HRC engine detonation sensors
- engine electrostarter

Options:

- K KART brakes
- MS KART brakes

- Ø 30 mm tube frame
- Ø 34 mm tube frame
