Parts list + Fotos

  XI. HONDA GX 390 EUR Foto
1101 Air filter MIV GX 390
-
-

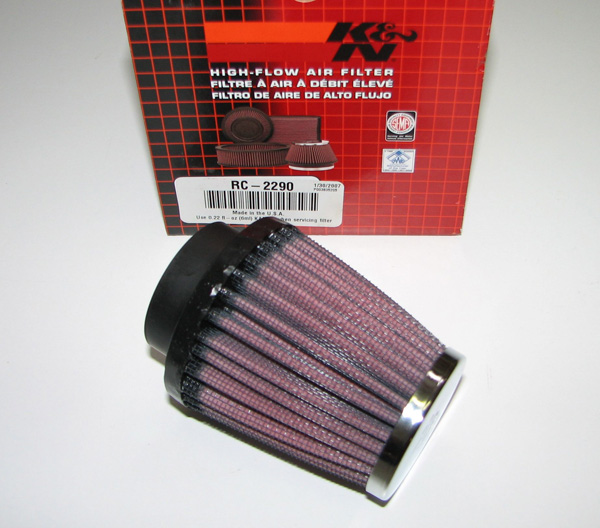

1101A Air filter K+N GX 390
-
-
1101B Air filter gasket HONDA GX 390 (16220-ZA0-702)
-
-
1102 Inlet valve HONDA GX 340/390
-
-

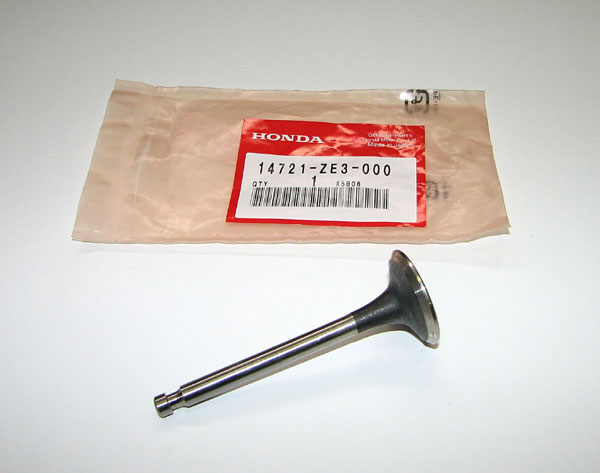

1102A Exhaust valve HONDA GX 390 (14721-ZE3-000)
-
-
1102B Valve springs - set
-
-
1102C Valve control rod HONDA GX 390 (14410-ZE3-013)
-
-
1102D Valve rocker arm HONDA GX 390 (14431-ZE2-010)
-
-
1102E Valve lifter HONDA GX 390 (14441-ZE2-000)
-
-
1103 Inlet tube MS GX 390
-
-
1103A Intake silencer flange MS GX 390
-
-
1104 Exhaust pipe MS GX 390
-
-
1104A Exhaust silencer MS GX 390
-
-

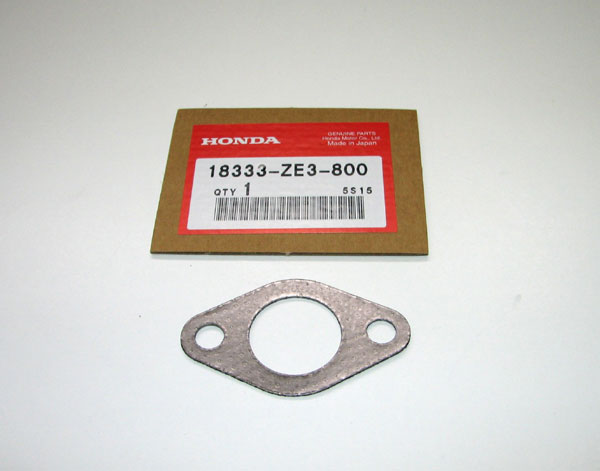

1104B Exhaust gasket HONDA GX 390 (18333-ZE3-800)
-
-
1104C Exhaust silencer gasket HONDA GX 390
-
-
1105 Lubrication plate GX 390
-
-
1106 Clutch SUCO F05 - complete
-
-
1106H Clutch washer SUCO F05 D 25 / 35 x 2
-
-
1106A Clutch hub SUCO F05
-
-
1106B Bearing 6008 ZZ - ZKL
-
-
1106C Clutch lining SUCO F05 - set
-
-

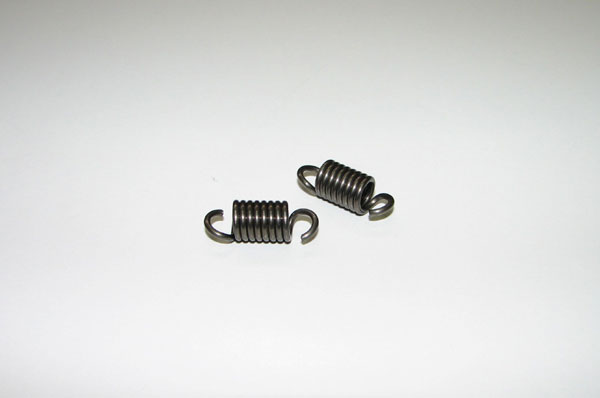

1106D Clutch spring 1800 (2 ks)
-
-
1106Da Clutch spring 2000 (4 ks)
-
-
1106Db Clutch spring 2200 (4 ks)
-
-
1106Dc Clutch spring 2400 (4 ks)
-
-
1106Dd Clutch spring 2600 (4 ks)
-
-
1106E Clutch flyweight - set
-
-
1106F Clutch weight shim
-
-
1106G Clutch screw plate SUCO
-
-
1106I Clutch cover with thread 24 mm SUCO
-
-
1107 Cylinder head gasket HONDA GX 390 - 1,2 mm (12251-ZF6-W00)
-
-
1107A Cylinder head gasket HONDA GX 390 - 1,4 mm
-
-
1107B Cylinder head gasket HONDA GX 390 - 1,6 mm
-
-
1107C Cylinder head gasket HONDA GX 390 - 1,8 mm
-
-

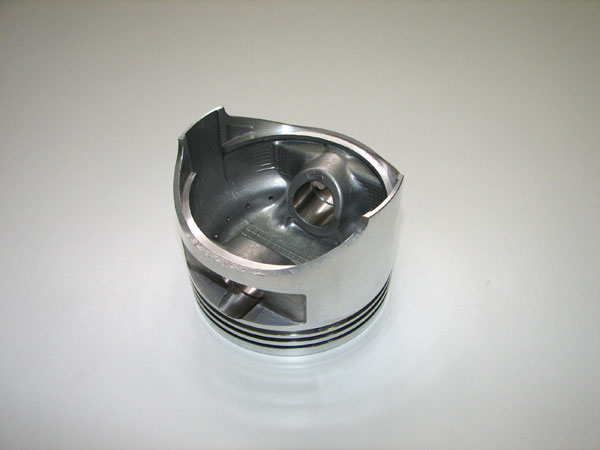

1108 Piston HONDA GX 390 (13101-ZF6-010)
-
-
1109 Piston rings HONDA GX 390 (13010-ZF6-003)
-
-
1110 Con rod HONDA GX 390 (13200-ZE3-010)
-
-
1111 Crank shaft HONDA GX 390 (13310-ZF6-010)
-
-
1112 Half-time shaft HONDA GX 390 (14100-ZF6-305)
-
-
1113 Carbureter HONDA GX 390 (16100-ZF6-W31)
-
-
1113A Inlet pipe gasket HONDA GX 390 (16223-ZE3-WOO)
-
-
1113B Carbureter gasket HONDA GX 390 (16221-ZF6-800)
-
-
1113C Carbureter prop HONDA GX 390
-
-
1114 Crank case gasket HONDA GX 390 (11381-ZE3-800)
-
-
1116 Delineator HONDA GX 390
-
-
1115 Sprocket removal tool - set
-
-
1121 Throttle cable holder HONDA GX 390
-
-
